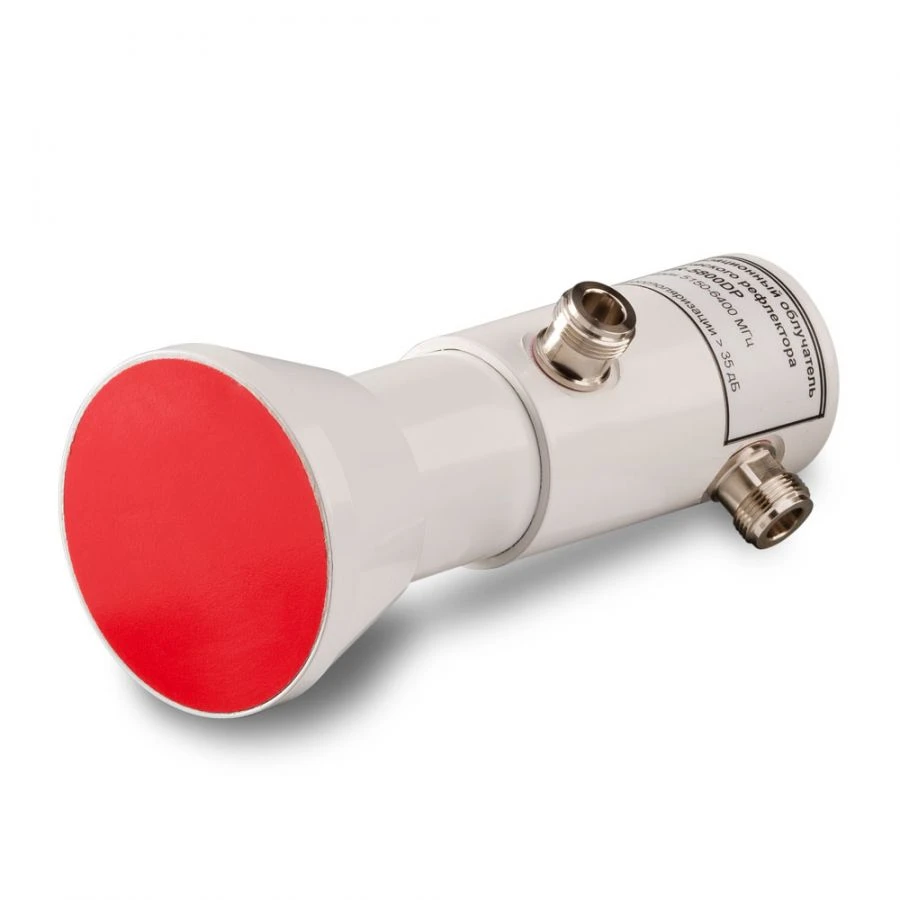

The illuminator is designed to work in standard satellite dishes. It is used for data transmission, for organisation of communication in trunk channels, in receiving and transmitting systems operating in the range 5150-5850 MHz. KIR-5800 DP with satellite dish can be used in computer networks, Wi-Fi networks, signalling systems, radio communication systems, etc.
The antenna system consisting of an irradiator and an offset mirror short-focus reflector has the highest possible gain compared to other types of antennas. The gain of an antenna with a dish with a diameter of 1.2 m can reach 36 dB. The use of these antennas allows you to build backbone data transmission channels at a distance of up to 35 km.
The antenna has two high-frequency connectors that allow simultaneous operation in vertical and horizontal polarisations. Thus, the antenna meets the standard MIMO 2x2 IEEE802.11n, which allows you to increase the bandwidth of the radio channel up to 150 Mbit / s..
