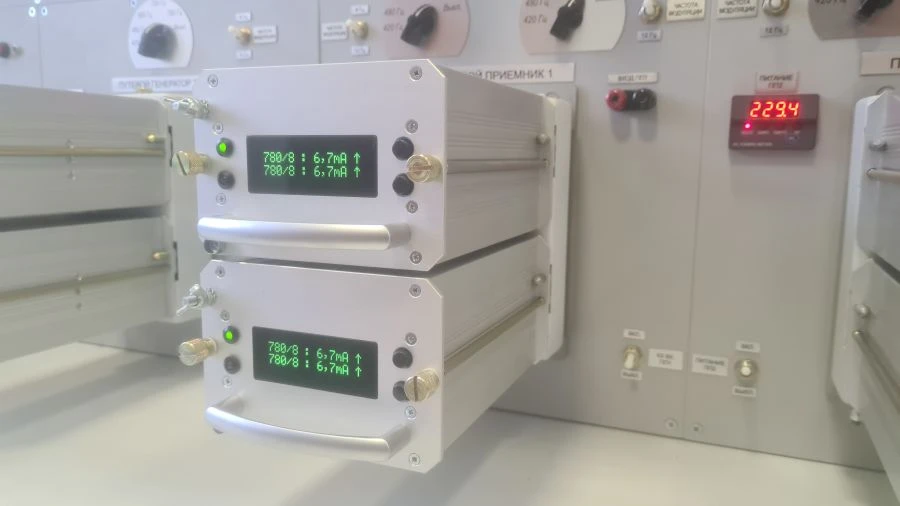

Name: Universal Track Receiver with Backup (PP-01/02R)
Brand: TMX Intelligent Systems
SKU: 317547
Availability: InStock

Universal Track Receiver with Backup (PP-01/02R)

Brand: TMX Intelligent Systems

$900 - $3,000 USD

MOQ: 2 pieces

Key Features

Number of independent receive channels: 2

Frequency of THz, carrier: 420/425, 480/475, 560/565/570/575/580, 720/725, 775/780 Hz

Receiver output voltage (supplying the trip relay): 5V with an upper/lower tolerance of 0.5V

Rated sensitivity for each channel (load turn-on voltage): 4,7 mV with permissible upper/lower deviation of 0,5 mV

Specifications

Number of independent receive channels

Frequency of THz, carrier

420/425, 480/475, 560/565/570/575/580, 720/725, 775/780 Hz

Receiver output voltage (supplying the trip relay)

5V with an upper/lower tolerance of 0.5V

Rated sensitivity for each channel (load turn-on voltage)

4,7 mV with permissible upper/lower deviation of 0,5 mV

Modulation frequency

8/12 Hz

Carrier frequency setting error

Lower/upper deviation not more than 1 Hz

Modulation frequency setting error

Lower/upper deviation not more than 0.3 Hz

Nominal input impedance

1 ohm with an upper/lower tolerance of 1%

Rated load-break voltage, per channel

3.3 mV with an upper/lower tolerance of 0.3 mV; return factor of 0.7 mV with an upper/lower tolerance of 10%

The maximum effective value of the TRC signal voltage at the tuning frequency, measured at the receiver input shunt, at which

98 mV

Receiver operation delay at input signal change at tuning frequency from 0 to switch-on voltage

Not more than 0,6 seconds

Delay of receiver switch-off when input signal at the tuning frequency changes from the switch-on voltage to 0

Not more than 0.9 seconds

Receiver provides control of two track relays of ANSH2-310 or ANSH2-1230 type, with equivalent resistance of winding constant

310 yd³

Type of power supply

Single-phase, 50 Hz AC with 1 Hz upper/lower permissible deviation

Operating range of supply voltage variation

187...242 thousand m³

Power consumption

No more than 30 W
