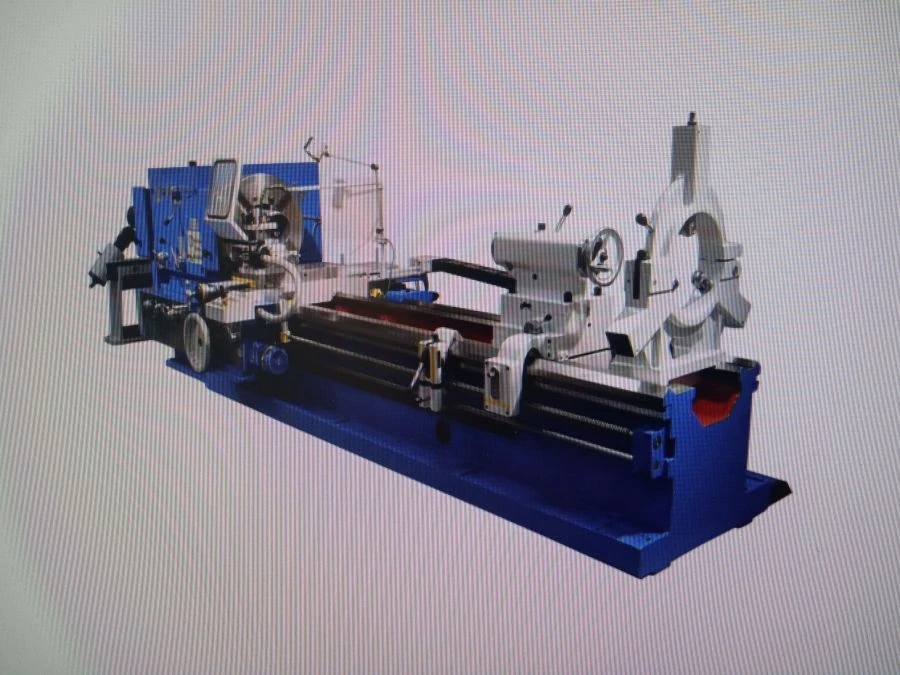

Special Pipe Processing Machine Model RT983

Special Pipe Processing Machine Model RT983

$15,000 - $48,000 USD

MOQ: 1 pieces

Key Features

Overall dimensions of the machine without support lunette (with free-standing electrical cabinet): 3600x4000x1850

Diameter range of pipes to be machined: 70...310 mm

Maximum length of machined pipe ends: 250 mm

Machine weight (with freestanding control cabinet): 8732

Supplier Information

RSZ LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The special pipe machining machine model RT983 is designed for machining pipes and parts for them, including threading in single and small batch production. The machine is used in industries manufacturing and repairing pipes and pipe joint parts, as well as in metalworking industries, where the pipe is used as a workpiece. The pipe to be machined is passed through a hollow spindle, clamped by two mechanised chucks and rotates with the spindle.

The other end of the pipe is mounted on a support lunette. The machine can be used for external turning, boring, drilling as well as thread cutting: metric and inch threads. The machine has a tapered ruler for machining tapered surfaces and cutting tapered threads.

The machine design provides for automation of individual elements of multi-pass thread cutting cycle.

Specifications

Overall dimensions of the machine without support lunette (with free-standing electrical cabinet)

3600x4000x1850

Diameter range of pipes to be machined

70...310 mm

Maximum length of machined pipe ends

250 mm

Machine weight (with freestanding control cabinet)

8732

Type of equipment

Coupling and pipe-working machines

Height of the tool to be mounted

40 mm

Maximum mass of the workpiece to be installed

1000 mm

Maximum length of the workpiece to be machined above the slide, max.

450 mm

The largest diameter of the workpiece above the bed, not less than

800 mm

The largest diameter of the workpiece to be installed above the slide, not less than

450 mm

The largest diameter of the workpiece mounted above the bed, not less than

800 mm
