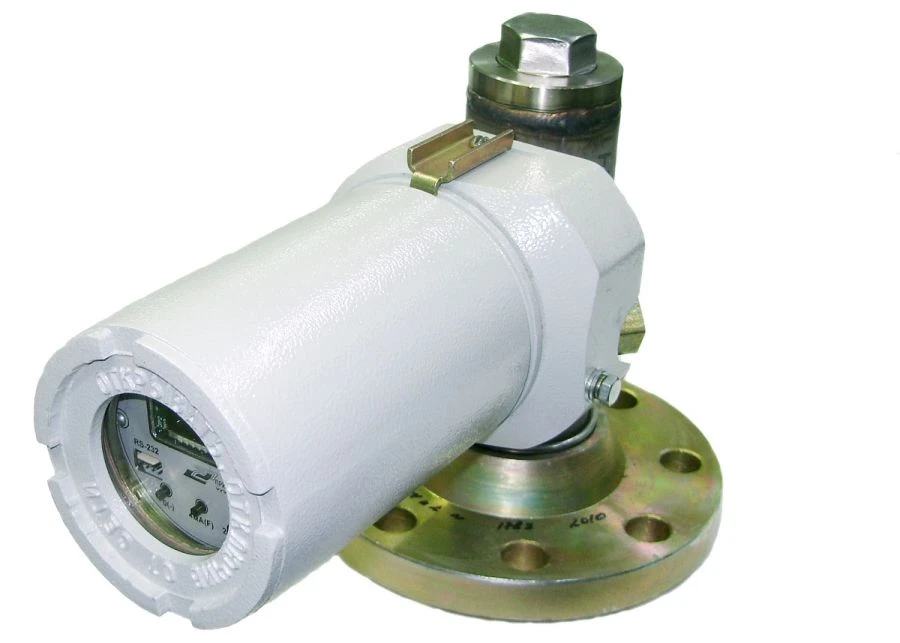

Sapphire-22MP-DU Electric Level Converter for Automatic Control

Sapphire-22MP-DU Electric Level Converter for Automatic Control

Brand: Sapfir

$450 - $1,800 USD

MOQ: 5 pieces

Key Features

Temperature: -50+120 ?

Density: 400 to 2000kg/m3

Weight of transducers (depending on model): 13.7...31.7 m² living area

Digital: By HART protocol (in 4-20mA circuit)

Supplier Information

SKB "Instruments and Systems" LLC

🇷🇺 📦 🏭 🛡️

View All Products (12)

Quick Inquiry

Description

Sapphire-22MP-DU transducers are designed for operation in automatic monitoring, regulation and control systems of technological processes, including those with explosive production conditions and provide continuous conversion of the measured liquid level (models 2620, 2622, 2630, 2640, 2650) or the level of the interface between two liquid phases (model 2615), both neutral and aggressive media into a standard current and (or) digital on the basis of HART-protocol output signal of remote transmission.

Specifications

Temperature

-50+120 ?

Density

400 to 2000kg/m3

Weight of transducers (depending on model)

13.7...31.7 m² living area

Digital

By HART protocol (in 4-20mA circuit)

Standard current

0-5 mA; 4-20mA

Temperature when using TP

-200-50S; +120+450S

Permissible basic reduced error

+/- 0,25%; +/- 0,5%, +/- 1,0%

Model 2615

0.6m; 1.0m; 1.6m

Model 2650

1,0m; 1,6m; 2,0m; 2,5m

Models 2620, 2622, 2630, 2640.

0.25m; 0.4m; 0.6m; 0.8m; 1.0m; 1.6m; 2.0m; 2.5m; 3.0m; 4.0m; 6.0m; 10.0m

Designation of version 01

Buick - st. 12Cr18Ni10T, body - st. 20, outlet diaphragm - st. 36NiCr, heat sink (TP) - st. 20 or st. 12Cr18Ni10T.

Designation of version 02

Bead - st. 12Cr18Ni10T, body - st. 12Cr18Ni10T, outlet diaphragm - st. 36NiCr, heat sink - st. 20 or st. 12Cr18Ni10T.

Model 2615

2.5 thous. t storage

Model 2650

20 thous. t storage

Model 2640

16 thous. t storage

Model 2630

6.3 thous. t storage

Model 2020, 2620

4 thous. t storage
