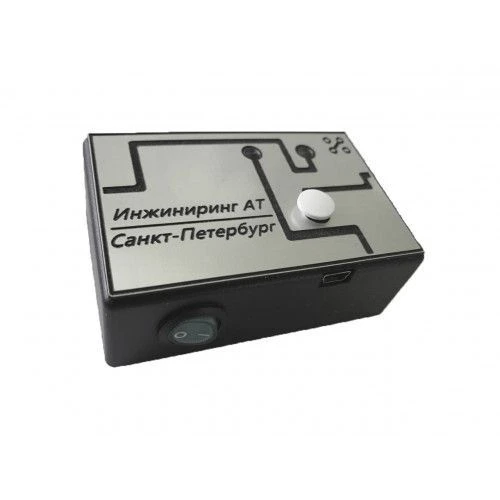

Autonomous loader (offline programmer) "OFF-PROG-1" is designed to load programs into microcontrollers of STM32 series without using a computer.
"OFF-PROG-1" allows to program microcontrollers located in places where there is no possibility to connect PC or laptop
One programme can be stored on the device for further loading into the microcontroller.
The programme is loaded via Serial Wire Debug (SWD) interface
Thanks to the built-in battery it is possible to load the program into the microcontroller with its own power supply as well as to supply power to the circuit from an offline programmer.
The maximum output current of the programmer on the 3.3 V line is 250 mA.
Firmware loading into the microcontroller programmer is performed via mini-USB connector using a special programme (included in the delivery set).
Supported firmware in HEX, BIN, DLX format
Charging of the programmer battery is also done via mini-USB connector.
OFF-PROG-1" programmer allows...
