Multifunctional Technical Complex KTSM-02 IN7.410.000

Multifunctional Technical Complex KTSM-02 IN7.410.000

Brand: INFOTEX AT

$15,000 - $60,000 USD

MOQ: 1 sets

Key Features

Determination of rolling units dislocation on the control section when trains move with speeds: 5...250

Power supply of the complex shall be carried out from the main and reserve network of alternating (50 Hz) current voltage: 220 thousand m³

Power consumption, max.: 1500 thous. pass.km

Time of keeping the working capacity of the complex at interruptions in the power supply from 220 V network: 10

Supplier Information

INFOTEX AT LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

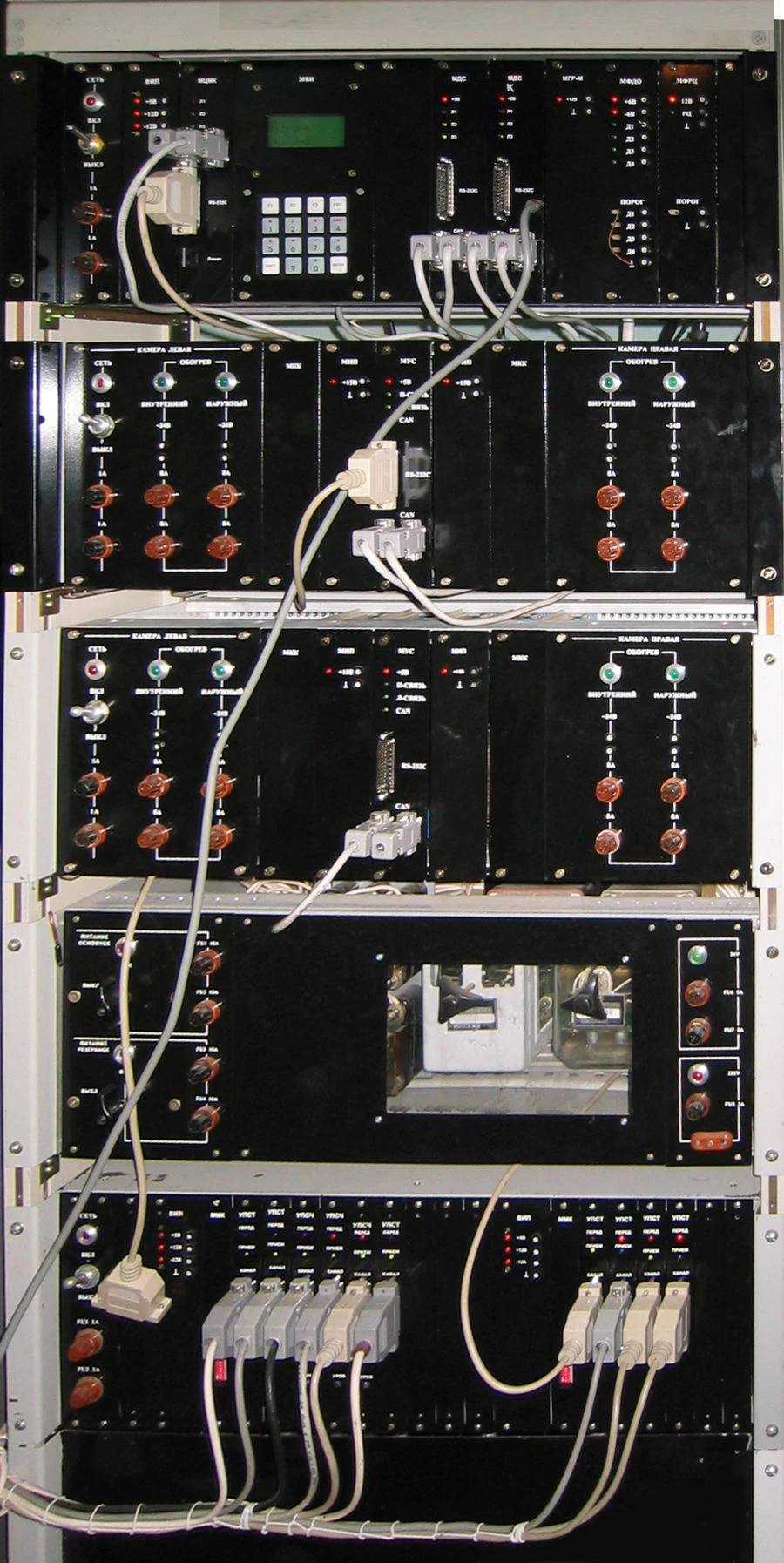

The complex of technical means multifunctional KTSM-02 is designed for automatic control of technical condition of railway rolling stock on the train running. In accordance with the project KTSM-02 can be equipped with control subsystems for various purposes: wagon axle units (B05, BN-05, B90), locomotive axle units (L05), braked wheelsets (T05), wheel defects control subsystem (K), subsystem for detection of dragging parts (UKSPS). The KTSM-02 complex includes an instrument rack, BSC-1 unit (protection devices, emergency relay, UKP-220M device), PK-05 unit (VIP module, MCMC module, PT module, MDS module, MUPK module, MGR-M module, MFDO module, MFRC module), BUNK unit (ICC module, MIP module, MKK module), KNM-05 (KNM-05-01) chamber, DTNV-2 (3) sensor in aspiration container, calibrator IN7.375.000; axis counting sensor (DM-95N, PE-1), I/O unit, UPS; set of mounting accessories (junction boxes, couplings, cables).

Specifications

Determination of rolling units dislocation on the control section when trains move with speeds

5...250

Power supply of the complex shall be carried out from the main and reserve network of alternating (50 Hz) current voltage

220 thousand m³

Power consumption, max.

1500 thous. pass.km

Time of keeping the working capacity of the complex at interruptions in the power supply from 220 V network

10

Measuring range of temperature difference at ambient air temperature (tov) from minus 50 to 30C

10...80 million m³

Measuring range of temperature difference at ambient air temperature (tov) above 30 to 55 C

10 to 110-(tov)

Limits of permissible absolute error of temperature difference measurement

-4...4 million m³
