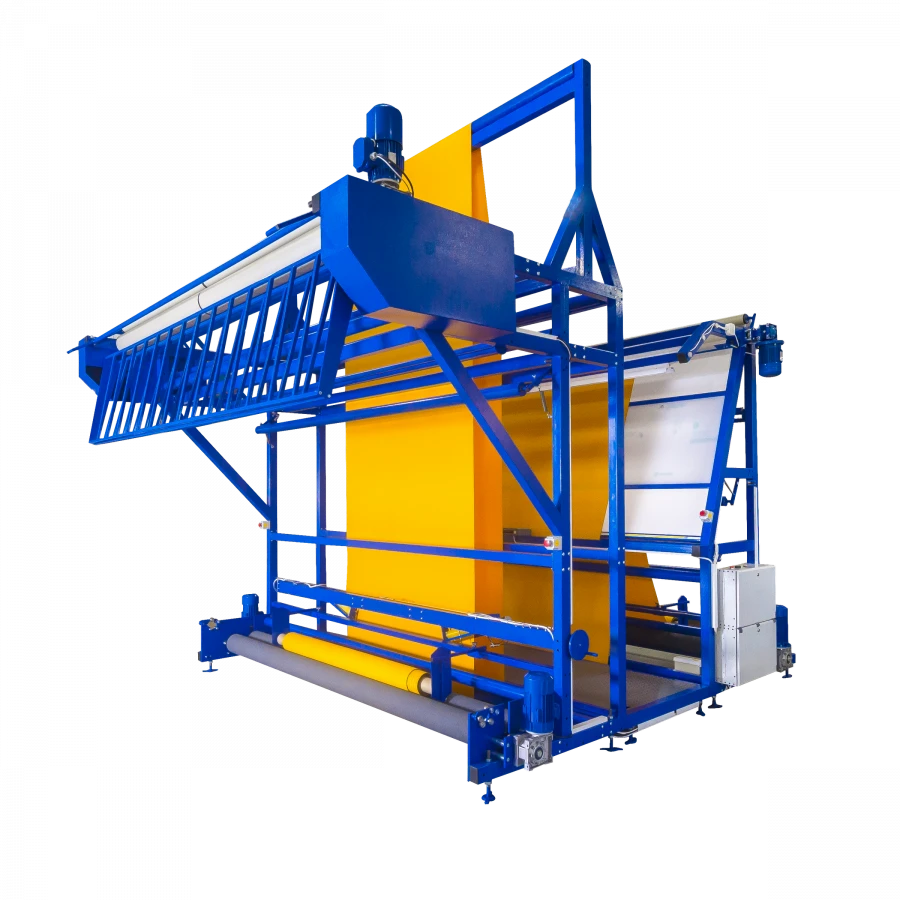

The measuring and rejecting machine model B02.24 is designed for rewinding of material from a cylindrical bale wound on a cardboard bobbin into a cylindrical bale wound on a cardboard bobbin or into a free stack, laid in a zigzag pattern / instead of laying in a stack, winding on a contact cart is possible, measuring metreage and quality control of inelastic ready-made or woven fabrics.
The machine provides rewinding of fabrics from a roll with diameters up to 600 mm and weight up to 400 kg into rolls with diameters up to 600 mm and weight up to 400 kg or rewinding into a stack with height up to 1400 mm.
The machine is available for bale widths up to 1800 mm / up to 2400 mm / up to 2800 mm. The machine is equipped as standard with rewind centring system, electronic programmable metre counter, forward and reverse travel, viewing screen with LED illumination, bale end sensor. The machine can be additionally equipped with additional overhead lighting, a device for static removal, adjustable ...
