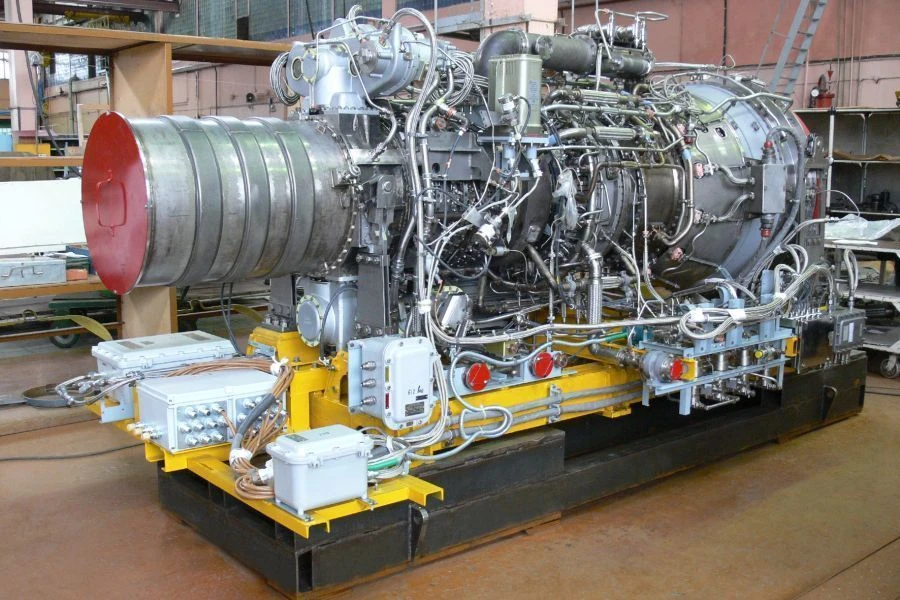

Marine Dual-Fuel Gas Turbine Engine E70/8RD

Marine Dual-Fuel Gas Turbine Engine E70/8RD

Brand: ODK-SATURN

$60,000 - $240,000 USD

MOQ: 1 units

Key Features

Power at the output shaft, MW: 8.68 m³

Weight (on frame), t: 4.75 thousand m² living area

Height, m: 1.81 m

Width, m: 1.92 m

Supplier Information

PJSC "ODK-SATURN"

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from ODK-SATURN

Gas Turbine Engine GTD-4RM for Gas Compressors

$150,000-$480,000

Gas Turbine Electric Generator SGTG-8

$1,500,000-$4,800,000

Gas Turbine Engine DO49R for Small Power Plants

$150,000-$480,000

Gas Turbine Engine GTD-10PME for Gas Compressors

$90,000-$300,000

Gas Turbine Engine GTE-10RM for Gas Compressors

$90,000-$300,000

GTD-6RM Dual-Shaft Gas Turbine Engine for Power Generation

$900,000-$3,000,000

Gas Turbine Engine GTE-6.3RM/8 for Compressor Drives

$90,000-$300,000

Gas Turbine Engine GТД-6.3PM for Compressors and Generators

$120,000-$480,000

Description

E70/8RD is a marine dual-fuel gas turbine engine (GTE) for use in ship propulsion systems, drive of electric generators and gas compressors in marine and seaside industrial facilities of small and medium capacity (from 8 MW and above).

Design Features:

- 10-stage compressor
- annular combustion chamber
- 2-stage compressor turbine
- 3-stage power turbine

Benefits:

- Ability to operate on different types of fuel: gaseous (natural gas, associated petroleum gas) and liquid (paraffin, diesel fuel)
- ability to switch from one type of fuel to another without stopping the engine
- high efficiency and fuel efficiency
- design specially developed for marine applications, approved by the Russian Maritime Register of Shipping
- high indicators of reliability and resources of GTEs and units based on them (gas generator tested in operation as a part of gas turbine drives of GPA)

Specifications

Power at the output shaft, MW

8.68 m³

Weight (on frame), t

4.75 thousand m² living area

Height, m

1.81 m

Width, m

1.92 m

Length, m

3.95 m

Gas flow rate at the outlet, kg/s

30 thousand kVAr

Gas outlet temperature, °C

470 million m³

Fuel consumption (at nominal mode), kg/hour

2120

Fuel used

gas ; diesel

N of output shaft, rpm

6084

EFFICIENCY (ISO 2314), %

34.4 set
