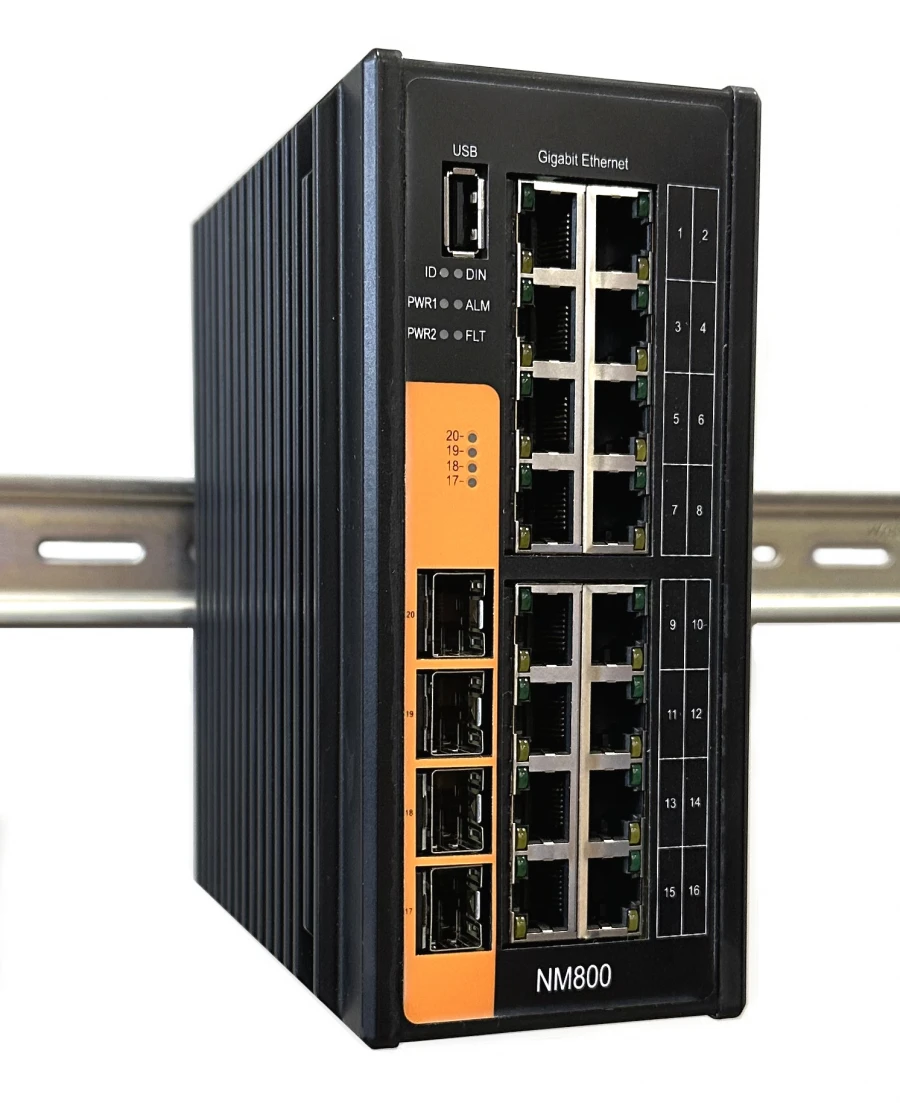

Managed Industrial Ethernet Switch NM800 for DIN Rail Applications

Brand: DOLOMANT

$900 - $3,600 USD

MOQ: 2 pieces

Key Features

Power consumption: max 50W (excluding external and PoE consumers)

Operating temperature: minus 40 °C to plus 55 °C

MAC address table size: 32K

External interfaces: Two power connectors (PWR1, PWR2); connector (USB Type B) for connecting to the "USB CONSOLE" console; connector for isolated dry contact input "DI"; connector (USB Type A) for connecting a drive for software update; SFP application.

Supplier Information

DOLOMANT OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

NM800 is a managed Ethernet switch designed to combine into a single information network of devices, complexes and various systems with the help of information transmission channels through a physical medium such as optical fibre and copper cable, as well as to create a single multi-service, fault-tolerant industrial data network, providing interconnection and operation of complex automation systems of technological processes of industrial facilities.
The product is equipped with 10/100/1000Base-T ports, some of which are PoE-enabled for twisted pair connections, and 10Gbase-X SFP ports, allowing you to connect to networks with copper and optical communication lines.

Specifications

Power consumption

max 50W (excluding external and PoE consumers)

Operating temperature

minus 40 °C to plus 55 °C

MAC address table size

32K

External interfaces

Two power connectors (PWR1, PWR2); connector (USB Type B) for connecting to the "USB CONSOLE" console; connector for isolated dry contact input "DI"; connector (USB Type A) for connecting a drive for software update; SFP application.

?????????? NM800-01/NM800-01-COATED

4 SFP+ 10 Gbase-X ports; 16 10/100/1000Base-T ports (8 PoE ports)

?????????? NM800-02/NM800-02-COATED

4 SFP+ 10 Gbase-X ports; 8 10/100/1000Base-T ports (8 PoE ports)

?????????? NM800-03/NM800-03-COATED

2 SFP 1000 Base-X ports; 8 10/100/1000Base-T ports

Connection to 10/100/1000Base-T

full duplex, half duplex

Indication

PWR1 power supply; PWR2 power supply; ALARM output status; FAULT output status; isolated input status; device identification

Buttons

Reset button with functions: - hardware reset, -software reset

Control interface

ICLI command line interface

Support for network standards

IEEE 802.3, 802.3i, 802.3u, 802.3z, 802.3ab

Protocol support

IPv4/IPv6; SNMP; LLDP; Port Mirror; DHCP Server; TFTP; SMTP; Telnet; Syslog; Flow Control; VLAN (IEEE 802.1Q standard); IGMP; STP, RSTP; HTTPS, SSL, SSH; NTP Client, PTP

Supports IEEE 802.3ad link aggregation

Armoured glass

Support for QoS mechanisms

Armoured glass

Port Mirroring Support (Port Mirroring)

Armoured glass

LLDP, LACP support

Armoured glass

ERPS G.8032 protocol support

Armoured glass

Type of architecture

Open
