High-Performance Machining Center S250

High-Performance Machining Center S250

$90,000 - $300,000 USD

MOQ: 1 pieces

Key Features

Longitudinal movement: 640 mm

Transverse movement: 250 mm

Maximum spindle speed: 24000

Machine weight: 1800 m² living area

Supplier Information

Stankoстроение LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

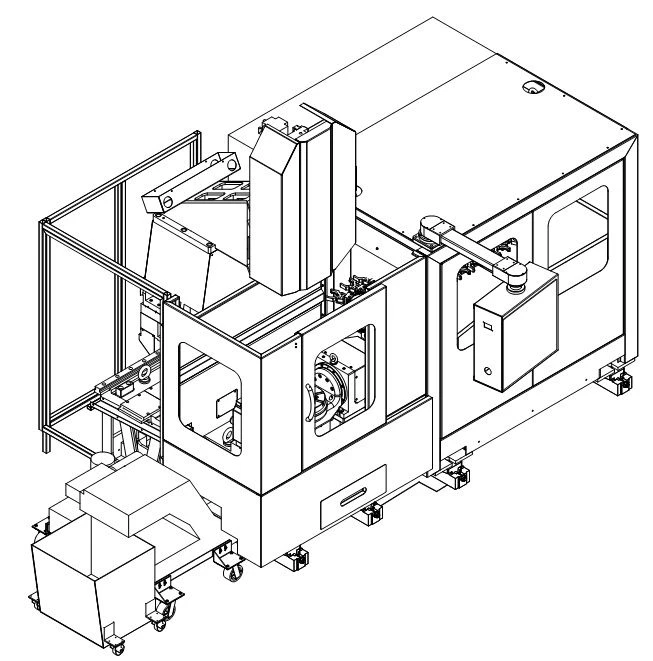

The machining centre model S250 is designed for high-performance milling of complex shaped parts with five axes. It is equipped with high-speed linear motion drives, tilt-and-turn table with an additional platform for three-axis machining. The delivery set includes: CNC system, high-speed milling spindle-motor, tool magazine, linear motors of X and Y axes, ball screws and guides, linear and angular displacement sensors, tilt-turn table, cutting zone fence, protection of guides and ball screws, automatic lubrication system, motor cooling system, pneumatic system, coolant supply and chip cleaning system, electrical cabinet, lighting.

Specifications

Longitudinal movement

640 mm

Transverse movement

250 mm

Maximum spindle speed

24000

Machine weight

1800 m² living area

Tool magazine capacity

24

Tool cone

ISO 40

Linear positioning accuracy

1 mm

Vertical movement

400 mm

Dimensions of the work surface of the flat table

250?250 mm

Faceplate diameter

250 mm

Number of controllable coordinate axes

5
