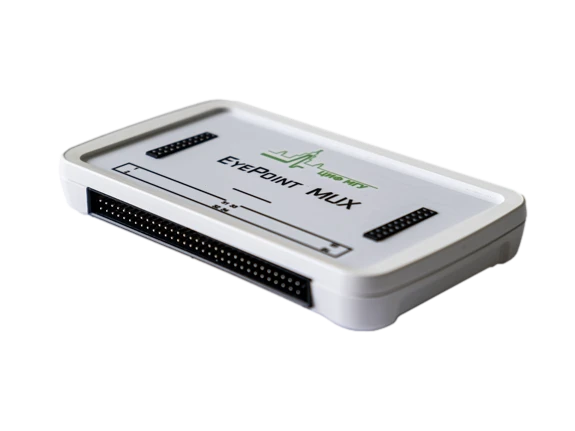

EyePoint Multiplexer Module MUX_S_A - 64 Channels

EyePoint Multiplexer Module MUX_S_A - 64 Channels

Brand: EyePoint

$150 - $540 USD

MOQ: 10 pieces

Key Features

Dimensions: 130x75x17.5 mm

Current range: 1 - 90000 µA

Channel capacity: 100 pF

Channel resistance: 11 yd³

Supplier Information

CIF MSU Lomonosov LLC

🇷🇺 📦 🏭 🛡️

View All Products (8)

Quick Inquiry

More from EyePoint

EyePoint S2 Signature Analyzer

$900-$3,000

EyePoint u22 Signature Analyzer for Faulty Electronic Component Localization

$900-$3,000

EyePoint a2 Signature Analyzer

$90-$360

EyePoint MUX_M Main Multiplexer Unit

$900-$3,000

EyePoint u21 Signature Analyzer

$150-$540

Description

Multiplexer module for 64 channels. Allows each of the 64 channels to be probed with respect to a common wire (one to many).

It is used in conjunction with the EyePoint MUX_M main unit. The multiplexer is designed for switching one input channel to any of the output channels in an operator-defined sequence.

With the help of the multiplexer it is possible to perform quick testing of edge connectors of defective boards, as well as to carry out input inspection of microchips when using specialised jigs for their installation.

Specifications

Dimensions

130x75x17.5 mm

Current range

1 - 90000 µA

Channel capacity

100 pF

Channel resistance

11 yd³

Test signal voltage

0.1...12 thousand m³

Trial signal frequency

1 kg

Weight

0.115 m² living area
