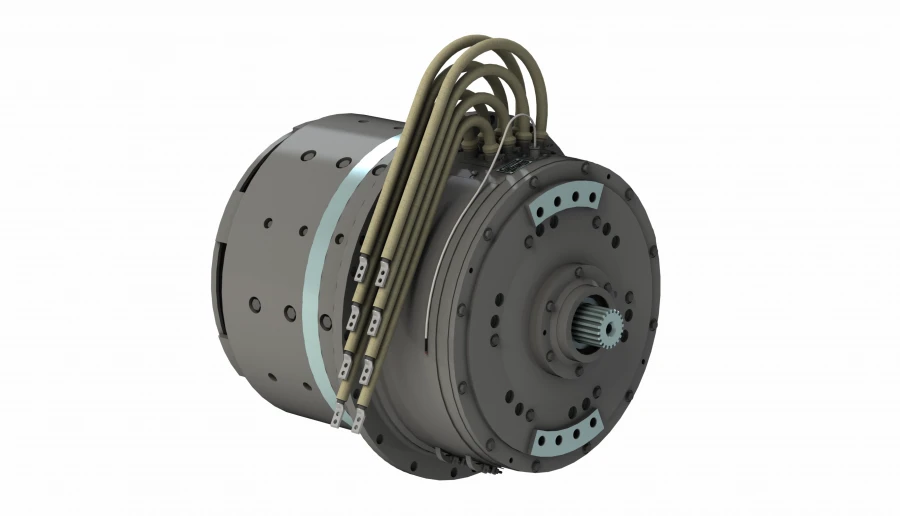

DC Traction Motor EDP-800 for BELAZ Dump Trucks

DC Traction Motor EDP-800 for BELAZ Dump Trucks

Brand: null

$42,000 - $150,000 USD

MOQ: 1 pieces

Key Features

Rated power: 800(???2);720(?2) l

Overall dimensions (DxW),mm: 1493*1200

Nominal voltage: 890 thousand m³

Nominal speed: 600

Supplier Information

SIBELECTROPRIVOD LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

DC traction motor of EDP-800 type is designed for motor-wheels of dump trucks "BelAZ" with payload up to 240 tonnes, operated in moderately cold and tropical climates.
Type of climatic execution UHL2, T2 according to GOST 15150.
In the conventional designation of the electric motor the letters and digits denote:
EDP - direct current electric motor;
800 - electric motor power, kW;
UHL2, T2 - type of climatic execution and placement category.
Example of electric motor record in technical documentation of other product and when ordering it:
"Traction electric motor EDP-800, UHL2, GPIN.652441.006 TU",
"Electric traction motor EDP-800, T2, GPIN.652441.006 TU".

Specifications

Rated power

800(???2);720(?2) l

Overall dimensions (DxW),mm

1493*1200

Nominal voltage

890 thousand m³

Nominal speed

600

Rated torque, N*m

12700(???2);11500(?2)

Maximum torque, N*m

25400(???2);22900(?2)

Efficiency factor

92 set

Rated degree of excitation

100 set

Minimum degree of excitation

32 set

Maximum speed

2000

Operating mode nominal

S2 (hourly)
