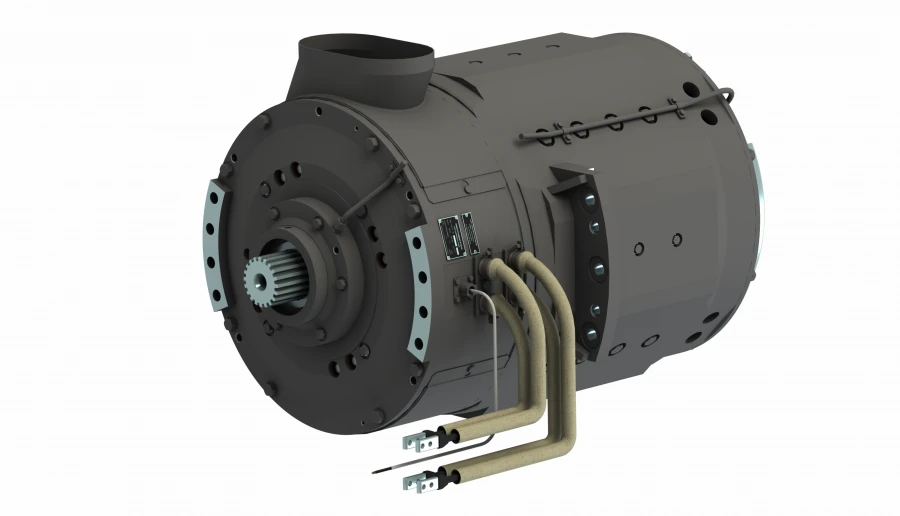

DC Traction Motor EDP-600 for BELAZ Dump Trucks

DC Traction Motor EDP-600 for BELAZ Dump Trucks

Brand: SIBELEKTROPRIVOD

$42,000 - $120,000 USD

MOQ: 1 pieces

Key Features

Nominal speed: 910

Nominal voltage: 830 thousand m³

Maximum speed: 2800(EDP-600 UHL2, EDP-600 T2); 3200(EDP-600-B UHL2, EDP-600-B T2)

Rated torque, N*m: 6300(EDP-600 UHL2, EDP-600-B UHL2);5700(EDP-600 T2, EDP-600-B T2)

Supplier Information

SIBELECTROPRIVOD LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from SIBELEKTROPRIVOD

Traction DC Electric Motor EDT-133K

$9,000-$30,000

Asynchronous Traction Motor ATD-4450/6 UHL2

$15,000-$48,000

Synchronous Traction Generator GSN 1600/8, GPI 528454.001 TU

$15,000-$48,000

Description

Electric motor of EDP-600 type is designed for operation as a drive of motor-wheels of dump trucks "BelAZ" with payload up to 220 tonnes, operated in moderately cold and tropical climates.
Type of climatic execution UHL, T2 according to GOST-15150.
In the conventional designation of the electric motor the letters and digits denote:
EDP - direct current electric motor;
600 - electric motor power, kW;
B - modification by maximum speed;
UHL2, T2 - climatic execution and placement category.

Example of electric motor record in technical documentation of other product and when ordering it:
"Electric motor traction EDP-600, UHL2, GPIN.652441.003 TU",
"Electric traction motor EDP-600-B, UHL2, GPIN.652441.003 TU",
"Electric traction motor EDP-600, T2, GPIN.652441.003 TU",
"Electric motor traction EDP-600-B, T2, GPIN.652441.003 TU", "Electric motor traction EDP-600-B, T2, GPIN.652441.003 TU".

Specifications

Nominal speed

910

Nominal voltage

830 thousand m³

Maximum speed

2800(EDP-600 UHL2, EDP-600 T2); 3200(EDP-600-B UHL2, EDP-600-B T2)

Rated torque, N*m

6300(EDP-600 UHL2, EDP-600-B UHL2);5700(EDP-600 T2, EDP-600-B T2)

Maximum torque, N*m

12700(EDP-600 UHL2, EDP-600-B UHL2);11500(EDP-600 T2, EDP-600-B T2)

Efficiency factor

94 set

Rated degree of excitation

100 set

Minimum degree of excitation

32 set

Operating mode nominal

S1(???????????????)
