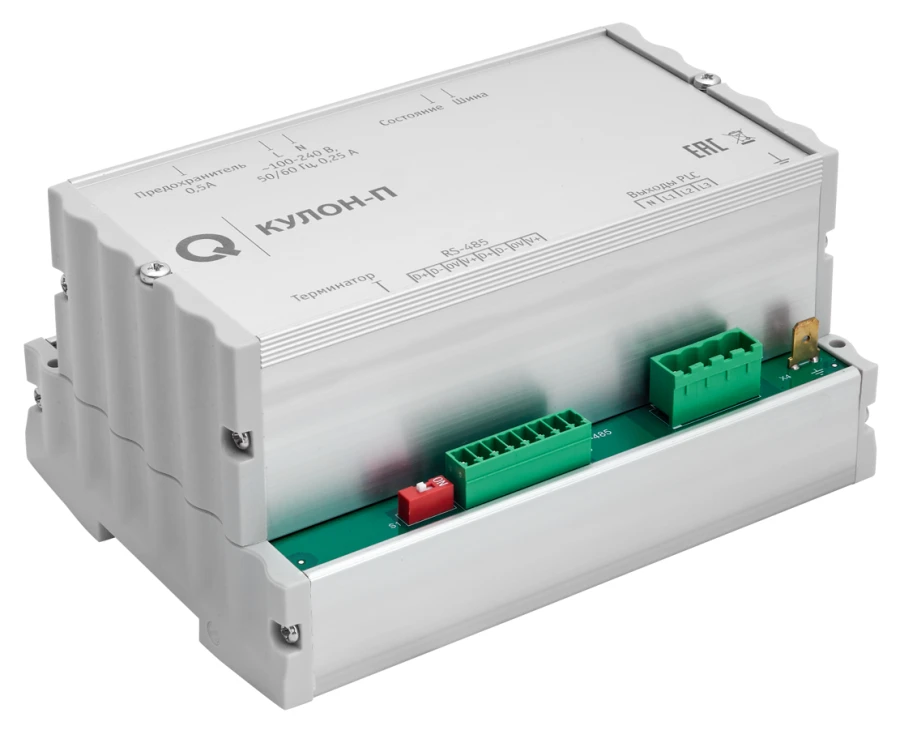

Control Module for Lighting Management System KULON-P

Control Module for Lighting Management System KULON-P

Brand: KULON

$90 - $300 USD

MOQ: 20 pieces

Key Features

Dimensions, mm: 142(L) x 105(H) x 74,5(W)

Operating temperature range: -40...70 million m³

Communication interfaces: RS-485

Dustproof: IP 20

Supplier Information

KSK LLC

🇷🇺 📦 🏭 🛡️

View All Products (3)

Quick Inquiry

Description

The KULON-P control module is designed for controlling specialised luminaires adapted for Simpline technology or luminaires with integrated terminal device PLC module.KULON-P is a Power Line Communication (PLC-modem) operating on Simpline technology. The function of the KULON-P device is to work with the PLC Module, by means of which individual control of luminaires, collection and transmission of data on the performance and power consumption of each luminaire to a single dispatching service is carried out.

The equipment is installed on a DIN-rail in the outdoor lighting control cabinet (UWR SHUNO KULON) or in existing cabinets. Remote control and data collection from the module is carried out from the server KULON with the software system KULON through controllers via RS-485 (MODBUS) interface.

Specifications

Dimensions, mm

142(L) x 105(H) x 74,5(W)

Operating temperature range

-40...70 million m³

Communication interfaces

RS-485

Dustproof

IP 20

Installation

DIN rail mounting

Customization

Remotely via KULON-C

Connection

Detachable terminal blocks 2EDGVC, 15EDGVC

fuse

0.5

Max. power consumption

5 thousand m³

Power supply voltage

~100-240V, 50/60Hz; -9-36V

Number of control phases

1...3 µGy
