Control Board for DPT-01 Source - DGTI.648411.001

Control Board for DPT-01 Source - DGTI.648411.001

$90 - $360 USD

MOQ: 20 pieces

Key Features

Dimensions: 130x150 mm

Execution: Made of materials that do not support combustion

MTBF: 15000 kcal/h

Type: switch board

Supplier Information

EMZ AVANGARD-KONVERSIYA OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The board provides coordination of carriage circuits and control circuits of DIP-01K source to control the source operation mode and indication of DIP-01K source state on the control panel in the driver's cabin. The board also controls the car lighting circuits operation mode.
The board is installed in the on-board power supply source DIP-01K DZHTI.435251.001-01.

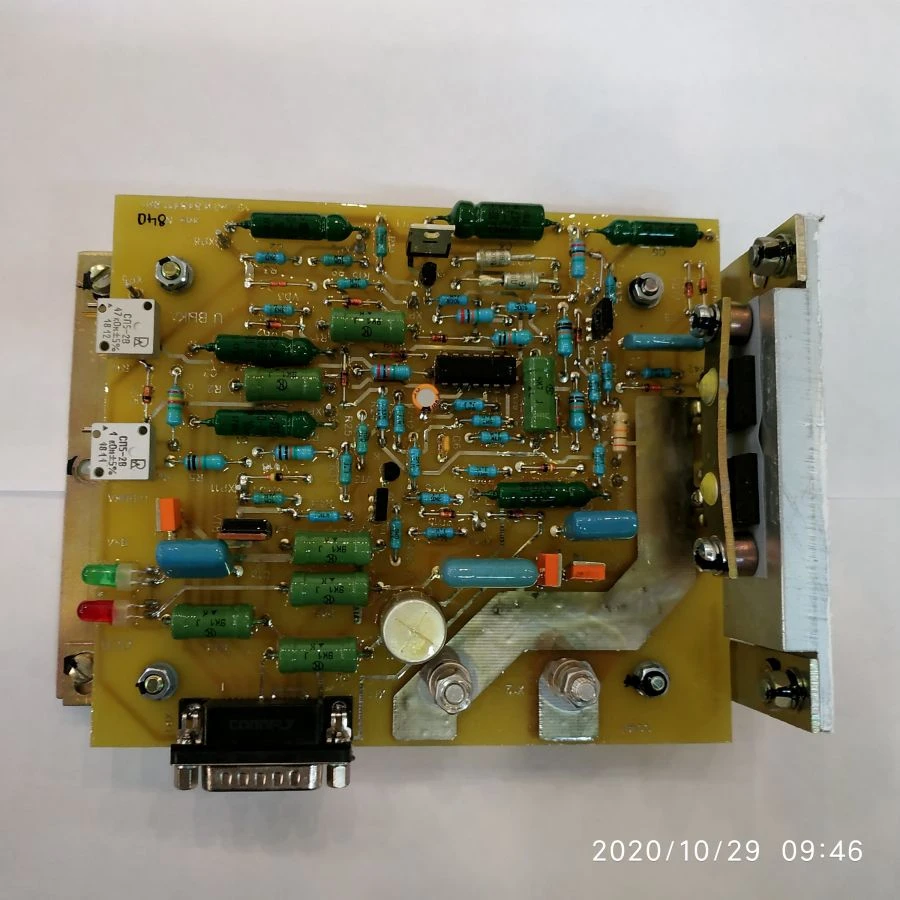

The board is a printed circuit board with a cooler.

Specifications

Dimensions

130x150 mm

Execution

Made of materials that do not support combustion

MTBF

15000 kcal/h

Type

switch board

Warranty period

2 kVAr

Shelf life

7 kVAr

Designation

????.648411.001 (???-01)
