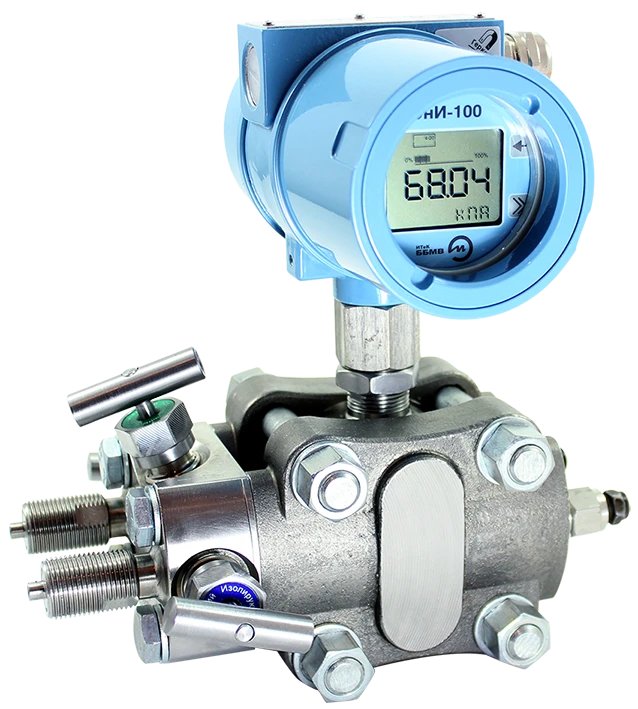

Designed for continuous conversion of the measured pressure of steam, liquid and gas into a unified current output signal and (or) digital signal based on HART-protocol (optional).
Basic reduced error: 0,075%; 0,1%; 0,15%; 0,2%; 0,25%; 0,5%.
Measured pressure range: up to 100 MPa
Inspection interval: up to 5 years
Explosion protection: general industrial; intrinsically safe electric circuit, protection against dust ignition by shell; flameproof enclosure; combined protection.
Range adjustment depth: up to 1:50.
Output signal: 4...20 mA
Indication: backlit LCD (up to -40 °C), LED (-60 °C and below).
Degree of protection of sensors from dust and water: IP65, IP66, IP67.
Safety completeness level: SIL2, SIL 3.
Menu: Russian and English.
Continuous self-diagnosis.
