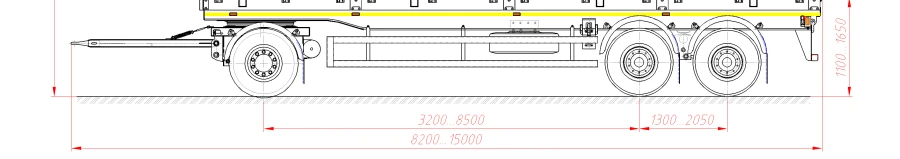

Cargo Trailer 843431 with Load Space Frame and Platform

Brand: NOVOSIBARZ

$15,000 - $48,000 USD

MOQ: 1 pieces

Key Features

Maximum length: 15000 mm

Axle load capacity: 8...10 thousand m² living area

Technically permissible maximum mass of the vehicle: 24000...30000 m² living area

Front track: 2000...2050 mm

Supplier Information

NOVOSIBARZ OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The trucks are designed for carriage of various cargoes, including long cargoes on roads of all categories of the general road network. They are equipped with container locks for carriage of various types of containers, including tank containers. Technically permissible maximum mass of the vehicle is 24000-30000 kg. Loading space - load-bearing frame with all-metal open platform. Drawbar with coupling loop of 50 mm diameter or 57,5 mm diameter.

Axles 9 tonnes manufactured by "Plant" Ltd. or Axle unit 9 tonnes. BPV-Ost Ltd. Tyres 385/55 R22,5; 385/65 R22,5 manufactured by JSC "Kordiant"/ LLC "Nizhnekamsk Tyre Plant CMK". Wheel discs manufactured by OOO "AccuRide Wheels Russia" or PJSC "ChKPZ".

Receiver manufactured by OOO TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta". Floor level crane manufactured by VBK Vostok Ltd.

Specifications

Maximum length

15000 mm

Axle load capacity

8...10 thousand m² living area

Technically permissible maximum mass of the vehicle

24000...30000 m² living area

Front track

2000...2050 mm

Rear track

2000...2050 mm

Base machine type

truck

Climatic version

UHL

Width

2550...3300 mm

Maximum height

4300 mm

Type of trailer

General purpose; container carrier; flatbed truck

Ergonomic parameters

Paintwork coatings used on the exterior surfaces of trailers may be painted or repainted with natural drying paints; the forces required to lift the spare wheel do not exceed 500 N (50 kgf). When using mechanisms

Warranty period

B1/B8 2100/900 MHz kWh

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Scope of application

Designed for transportation of various cargoes, including assorted and other long cargoes, containers of various types, including tank containers on roads of all categories of the general road network.

Vehicle kerb weight

5000...14000 m² living area

Base

3200...8500+1300...2050

Number of axles

3 µGy
