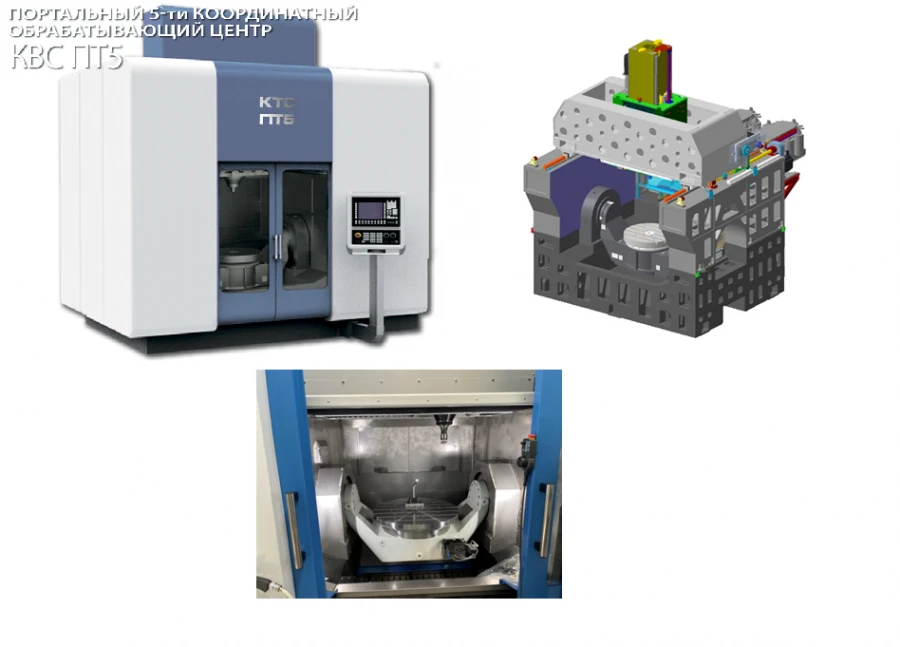

5-Axis Portal Machining Center KVS PT5

5-Axis Portal Machining Center KVS PT5

Brand: KVS

$90,000 - $300,000 USD

MOQ: 1 pieces

Key Features

Spindle power: 27 l

Stroke along axes: x=800 mm; y=800 mm; z=600 mm; a=240 degrees (±120); c=360 degrees mm

Height: 3395 mm

Machine type: five-axis vertical milling machining centre with cnc

Supplier Information

KЭMZ OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

5 coordinate machining centre "KVS" model PT5 is designed for milling, drilling, threading and boring operations on workpieces of complex configuration made of various materials weighing up to 600 kg with the help of axial tools rotating at a maximum speed of up to 18000* rpm. Spindle power up to 27* kW. Diameter of the work table from 630 to 800* mm. Stroke X= up to 800 mm, Y=800 mm, Z=600 mm, Table tilt=240 degrees (±120), Table rotation=360 degrees.

* - It is possible to modify the parameters according to the customer's technical specification.

Specifications

Spindle power

27 l

Stroke along axes

x=800 mm; y=800 mm; z=600 mm; a=240 degrees (±120); c=360 degrees mm

Height

3395 mm

Machine type

five-axis vertical milling machining centre with cnc

Power supply voltage

380 thousand m³

Maximum workpiece diameter

1000 mm

Highest workpiece height

600 mm

Weight of workpiece to be installed

1000 m² living area

Weight

20500 m² living area

Maximum diameter of the work table

800 mm

Length

5350 mm

Width

5000 mm

Maximum rotational speed

18000
